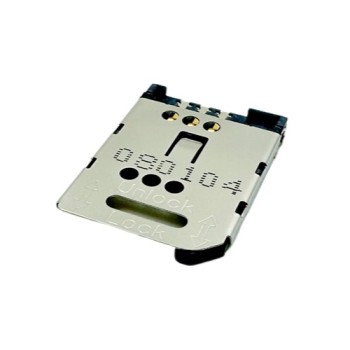

SIM Card Connector HingeType Top Mount Height 1.90mm
- group name
- Mini SIM Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SIM Card Connector (SM190-T6250-01-W) (473882001)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Fri, 06 Jun 2025 20:38:18 GMT
Paramtents
Product Height 1.90mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
-
Min Order1000 piece
Briefing
Elevate Your Devices With Our HingeType SIM Card Connector We Offer OEM & ODM Services For Distributors And Wholesalers
Detailed
Learn about Height 1.90mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
2.54mm Pitch SIM Card Connector,Top Mount SMT Type,Hinge Structure, 1.90mm Height
Advantage：
1. Hinge structure design,ensure to connect better for the terminals and a card.
2.Stronger locking on a SIM card,can keep better connection in the environment of vibration.
3. Slope-shaped terminals, prevent terminals to be damaged when the card is inserted and extracted.
4. Card polarization feature, unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.90mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
6
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Mobile Communication,Car Central Control System,Mobile Wifi | |
Download
Detail Drawing of Height 1.90mm Mini SIM Card Connector
