Micro SD Card Connector Push-Push Height 1.80mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector (MC180-T6230-01-W) (5025700893)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sun, 07 Dec 2025 16:15:46 GMT
Paramtents
Product Height 1.80mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SD Card Connector Push-Push 1.80mm Height Perfect For OEM & ODM Needs High Quality Card Connectors For Wholesalers And Distributors
Detailed
Learn about 1.80mm Micro SD Card Connector

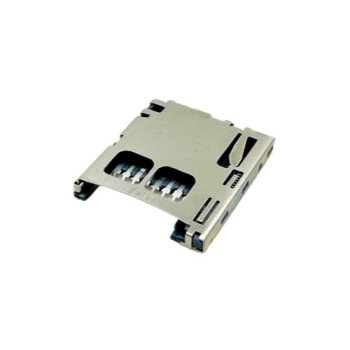

Micro SD Memory Card Connector
1.10mm Pitch Micro SD Memory Card Connector,Top Mount SMT Type,Push-Push Structure,1.80mm Height
Advantage：
1. Push-push structure desigin,easily insert or extract Micro SD cars.
2. Stronger machine structure design,support durability of 5000 cycles.
3. Reliable detection switch pins,support ho-plug function.
4. Slope-shaped terminals, prevent terminals damage when the card is inserted and extracted.
Understand the Parameters of the 1.80mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments,Industrial Automation,Drive Recorders,Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.80mm Micro SD Card Connector
