Micro SD Memory Card Connector Push-Push Top Mount Height 1.95mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MC195-T1251-01) (SD-47352-101)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 14 Jun 2025 15:23:35 GMT
Paramtents
Product Height 1.95mm
Usable Memory Card Micro SD 4.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Discover Our Micro SD Memory Card Connector Featuring A Push-Push Design OEM&ODM Offered For Dealers
Detailed
Learn about Height 1.95mm Micro SD Card Connector

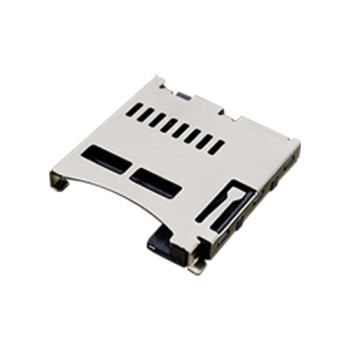

Micro SD Memory Card Connector
1.10mm Pitch Micro SD Memory Card Connector,Top Mount Type,Push-Push Structure,1.95mm Height
Advantage：
1. Easily push-push Micros SD card injection,users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable detection Switch, supports hot-plug function.
3. Slope-shaped terminal, prevents terminal damage when the card is inserted and extracted.
4. Strict control for coplanarity ensures better solderability.
Understand the Parameters of the Height 1.67mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500V DC
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 10000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.95mm Micro SD Card Connector
