Micro SIM Card Connector Top Mount With Tray Height 1.80mm
- group name
- Micro SIM Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SIM Card Connector（MS180-T1151-01) (SF51S006V4D)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 14 Jun 2025 16:29:38 GMT
Paramtents
Product Height 1.80mm
Usable Memory Card Micro SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SIM Card Connector Top Mount Height 1.80mm Offering OEM&ODM Solutions For Importers And Wholesale Agents Worldwide
Detailed
Learn about Height 1.80 mm Micro SIM Card Connector

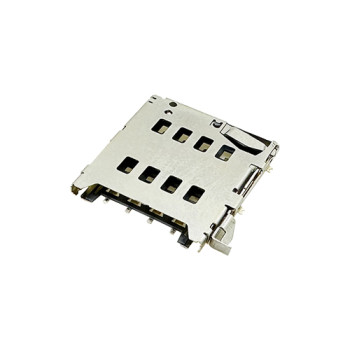

Micro SIM Card Connector
2.54mm Pitch Micro SIM Card Connector,Top Mount SMT Type,With Tray Structure,1.80mm Height
Advantage：
1. The micro SIM card socket with a tray ensure reliable connection for terminals and cards.
2. Reliable detection switch pins, supports hot-plug function.
3. The micro SIM card socket with a tray ensure reliable connection in vibrating environment.
4. Slope-shaped terminal, prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.80 mm Micro SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
30V AC
|
|
|
Contact Resistance:
|
100 mΩ Max
|
|
|
Insulation Resistance:
|
1000 MΩ Min
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Tablet PC,Laptop PC,Smart Home,Smart Car,Mobile Communication | |
Download
Detail Drawing of Height 1.80mm Micro SIM Card Connector
