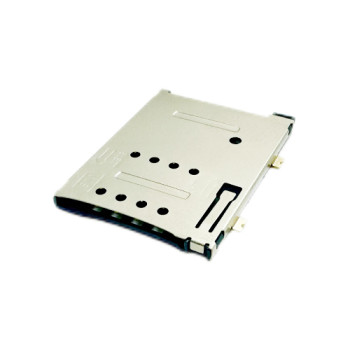

SIM Card Connector Push-Push Top Mount Height 1.80mm
- group name
- Mini SIM Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SIM Card Connector（SM180-T1250-41-W）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 19 Jun 2025 18:28:59 GMT
Paramtents
Product Height 1.85mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
-
Min Order1000 piece
Briefing
High-Quality SIM Card Connector Push-Push Design Top Mount 1.80mm Height OEM & ODM Services For Wholesalers And Distributors
Detailed
Learn about Height 1.80mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure,1.85mm Height
Advantage：
1. Push-push structural design,easily insert or extract SIM cars for users.
2. Reliable detection switch pins, support hot-plug function.
3. The SIM card connector has 8 contaction pins to suit any SIM cards.
4. Ultra-thin structural design,saves more internal space for your products.
Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
5.0 vrms
|
|
|
Contact Resistance:
|
100mΩ
|
|
|
Insulation Resistance:
|
500mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Smart Home,,Mobile Communication,Mobile Wifi | |
Download
Detail Drawing of Height 1.80mm Mini SIM Card Connector
