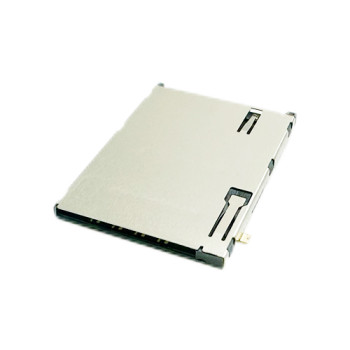

SIM Card Connector Push-Push 6pin With 1 Switch Pin Top Mount Height 1.85mm
- group name
- Mini SIM Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SIM Card Connector（SM185-T1131-50-W）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 19 Jun 2025 19:54:31 GMT
Paramtents
Product Height 1.85mm
Usable Memory Card SIM card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
-
Min Order1000 piece
Briefing
SIM Card Connector Stable And Reliable Communication And Excellent Durability Widely Used In All Kinds Of Communication Devices
Detailed
Learn about Height 1.85mm Mini SIM Card Connector
Mini SIM(Subscriber Identity Module) Card Connector
1.27mm Pitch Mini SIM Card Connector,Top Mount SMT Type,Push-Push Structure, 1.85mm Height
Advantage：
1. Push-push structural design,easily insert or extract SIM cards for users.
2. Reliable detection switch pins, support hot-plug function.
3. The ingenious sliding design ensures a minimum lifespan of 5,000 cycles.
4. Slope-shaped terminals design,prevent terminals damage when the SIM card is inserted and extracted.
Understand the Parameters of the Height 1.85mm Mini SIM Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5A
|
|
|
Rating Voltage:
|
40V DC
|
|
|
Contact Resistance:
|
30mΩ
|
|
|
Insulation Resistance:
|
1000mΩ
|
|
Useful Life: | 5000 Cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Superb card locking function
|
|
Used for: | Smart Home,Mobile Communication,Mobile Wifi | |
Download
Detail Drawing of Height 1.85mm Mini SIM Card Connector
