SD 8.0 Card Connector 4GB/s Top Mount Push-Push Height 3.58mm
- group name
- SD 8.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD 8.0 Card Connector（SD358-T1250-10）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 17 May 2025 11:23:59 GMT
Paramtents
Product Height 3.58mm
Usable Memory Card SD 8.0/SD 7.0/SD 4.0/SD 3.0 memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
High-performance SD 8.0 card holder connector supports the latest data transfer standards to ensure stability and speed.
Detailed
Learn about Height 3.58mm SD 8.0 Card Connector

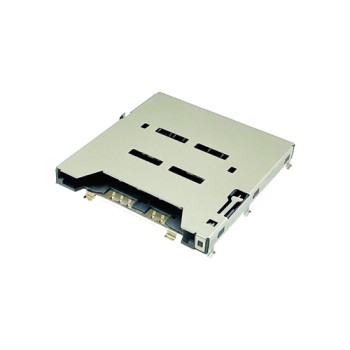

Secure Digital (SD) 8.0 Memory Card Connector
Secure Digital (SD) 8.0 Memory Card Connector
1.00mm Pitch SD 8.0 Memory Card Connector, Top Mount SMT Type, Push-Push structure, 3.58mm Height
Advantage：
1. Strict coplanarity control ensures good reflow reliability.
2. Simple design, no automatic ejection mechanism, with price advantage.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 3.58mm SD 8.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
4 Gb/s
|
|
|
Number of pins:
|
29
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 3.58mm SD 8.0 Card Connector
