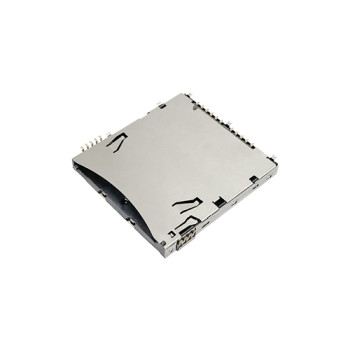

SD 7.0 Card Connector Bottom Mount Push-Push Type Height 3.25mm
- group name
- SD 7.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD 7.0 Card Connector（SD325-T1150-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 17 May 2025 14:09:12 GMT
Paramtents
Product Height 3.25mm
Usable Memory Card SD 7.0/SD 4.0/SD 3.0memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
High speed SD 7.0 Card Connector, Bottom Mount, Push-Push Type, Double Shell,for Digital Camera
Detailed
Learn about Height 3.25mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.40mm Pitch SD 7.0 Memory Card Connector, Bottom Mount SMT Type, Push-Push structure, 3.25mm Height
Advantage：
1. The dual-shell design ensures a more robust structure.
2. Equipped with a push-push mechanism for easy insertion and ejection of SD cards, with a lifespan of up to 10,000 cycles.
3.Backward compatible with older standards such as SD 4.0 and 3.0, supporting multiple memory card types for enhanced user flexibility.
4.This product is widely used in industrial equipment, digital cameras, laptops, and other fields.
Understand the Parameters of the Height 3.25mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
10
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 3.25mm SD 7.0 Card Connector
