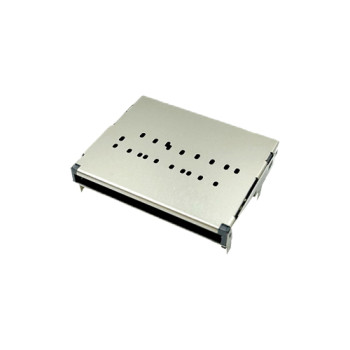

SD7.0 Card Socket Connector Push-Pull Type Bottom Mount Height 5.87mm
- group name
- SD 7.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD 7.0 Card Connector（SD587-D1250-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 17 May 2025 14:11:28 GMT
Paramtents
Product Height 5.87mm
Usable Memory Card SD 7.0/SD 4.0/SD 3.0memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Detailed
Learn about Height 5.87mm SD 7.0 Card Connector
Secure Digital (SD) 7.0 Memory Card Connector
1.05mm Pitch SD 7.0 Memory Card Connector, Bottom Mount SMT Type, Push-Pull structure, 5.87mm Height
Advantage：
1. The product features an stand off structure to align with the card slot design of customer products.
2. The shell solder pins utilize DIP type to ensure secure soldering.
3.Compliant with SD 7.0 standard, delivering transfer speeds up to 985MB/s to meet the demands of 4K/8K ultra-HD video and high-speed photography applications requiring large-capacity storage.
4.Incorporates a push-pull mechanism for convenient SD card insertion/ejection, rated for 10,000 operation cycles.
Understand the Parameters of the Height 5.87mm SD 7.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
985 Mb/s
|
|
|
Number of pins:
|
21
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Detail Drawing of Height 5.87mm SD 7.0 Card Connector
