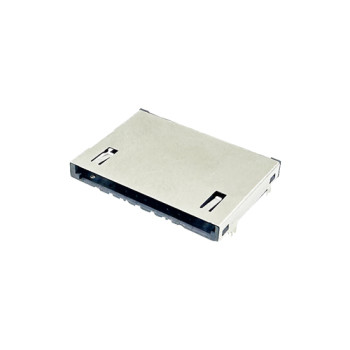

SD 4.0 Card Connector Push-Pull Top Mount Height 4.00mm
- group name
- SD 4.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD 4.0 Card Connector（SD400-D1251-20）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 17 May 2025 16:00:04 GMT
Paramtents
Product Height 4.00mm
Usable Memory Card SD 4.0/SD 3.0memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
SD 4.0 Card Holder Connector 300M/s Data Transfer Standards Bulk-Storage Memory For UAV
Detailed
Learn about Height 4.00mm SD 4.0 Card Connector
Secure Digital (SD) 4.0 Memory Card Connector
0.90mm Pitch SD 4.0 Memory Card Connector, Top Mount DIP Type, Push-Pull structure, 4.00mm Height
Advantage：
1. The product features a top mounted stand-off design for flexible adaptation to customers' internal device space layouts.
2. Simple design, no automatic ejection mechanism, with price advantage.
3.10,000 insertion and extraction cycles with precision contact springs for long-term reliable connections.
4.Reliable detect switch,assures card detection.
Understand the Parameters of the Height 4.00mm SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Transmission
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 4.00mm SD 4.0 Card Connector
