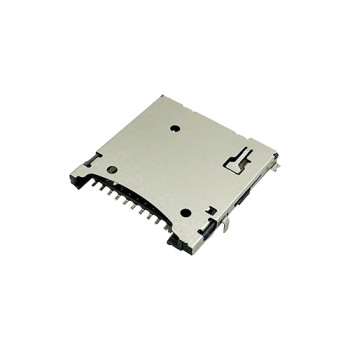

Micro SD 4.0 Card Socket 300MB/s Push-PushTop Mount Height 1.67mm
- group name
- Micro SD 4.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MC167-T1150-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 06 Dec 2025 17:54:01 GMT
Paramtents
Product Height 1.67mm
Usable Memory Card Micro SD 4.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
TF 4.0 Card Socket Connector Push-Push Type With Card Detection Pin Used In High Performance Card Reader and UAV
Detailed
Learn about Height 1.67mm Micro SD Card Connector
Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Type, Push-Push structure,1.67mm Height
Advantage：
1. Supports Micro SD 4.0 high-speed transfer, and used in UAV field.
2. Push-Push mechanism enables easy card insertion and ejection with a lifespan of over 5,000 cycles.
3. Features a detection pin design supporting hot-plug functionality.
4. Complies with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 1.67mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
18
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.67mm Micro SD Card Connector
