Microsd memory card slot Push-Push Sink Bottom Mount Type Height 1.75mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MC175-T1250-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Fri, 23 May 2025 20:04:56 GMT
Paramtents
Product Height 1.75mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SD Card Connectors Are Designed For Secure And Reliable Connections With Micro SD Cards Commonly Used In Smart Home
Detailed
Learn about Height 1.75mm Micro SD Card Connector

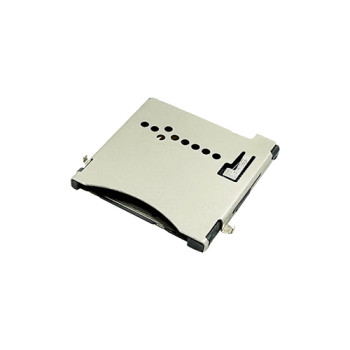

Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector, Bottom Mount Sink 1.45mm Type, Push-Push structure,1.75mm Height
Advantage：
1. Easily push-push Micros SD card injection,users can use it easily by pushing the micro SD card to insert and pull out it.
2. Sink Design, Offers more interior space savings for customers' products.
3. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.
4. Card polarization feature, unique card socket design prevents improper card insertion.
Understand the Parameters of the Height 1.75mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.75mm Micro SD Card Connector
