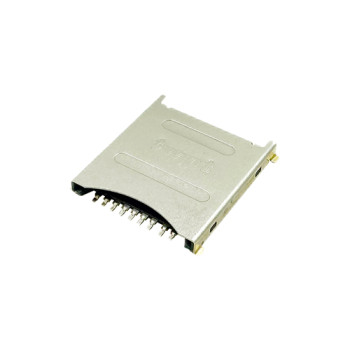

Micro SD Card Connector UFS/UHS 3 in 1 Push-Pull Height 1.60mm
- group name
- Micro SD 4.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（UF160-T1131-11）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 19 Jun 2025 21:13:21 GMT
Paramtents
Product Height 1.60mm
Usable Memory Card Micro SD 4.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SD Card Connector UFS/UHS 3 in 1 Push-Pull Height 1.60mm OEM&ODM Services Available For Wholesalers And Distributors
Detailed
Learn about Height 1.60mm Micro SD Card Connector
Micro SD Memory Card Connector
1.10mm pitch Micro SD UFS/UHS 3 in 1 Memory Card Connector,Top Mount Type,Push-Pull Structure, 1.60mm Height
Advantage：
1. Strict coplanarity control ensures better soldering performance.
2. High-speed transmission design ensures faster reading data.
3. Ultra-thin design offers more interior space savings for customers' products.
4. Slope-shaped terminals, prevent terminals damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.60mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
19
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.60mm Micro SD Card Connector
