Micro SD Card Connector Push-Push Top Mount Stand Off Type Height 3.70mm
- group name
- Micro SD 4.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MS370-D1150-11）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 22 May 2025 19:35:07 GMT
Paramtents
Product Height 3.70mm
Usable Memory Card Micro SD 4.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Detailed
Learn about Height 3.70mm Micro SD Card Connector
Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Stand off 2.43mm Type, Push-Push structure,3.70mm Height
Advantage：
1. The product adopts a stand-off type design, providing flexible adaptation to the internal space layout of customer equipment.
2. Supports Micro SD 4.0 high-speed transfer, making it ideal for high-performance card reader products.
3. Features hot-plug capability, allowing storage card recognition without requiring device restart.
4. Equipped with push-push mechanism for easy card insertion/ejection, with a lifespan exceeding 10,000 cycles.
Understand the Parameters of the Height 1.75mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
18
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |

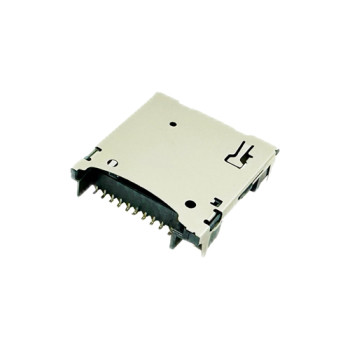

Detail Drawing of Height 3.70mm Micro SD Card Connector
