Micro SD Memory Card Connector Push-Push Sink 1.35mm Top Mount Height 1.75mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MS135-T1230-51）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 24 May 2025 15:17:51 GMT
Paramtents
Product Height 1.75mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SD Card Socket Optimized For Reliability And High-Speed Data Transfer Widely Used In Vedio Record On Cars
Detailed
Learn about Height 1.75mm Micro SD Card Connector

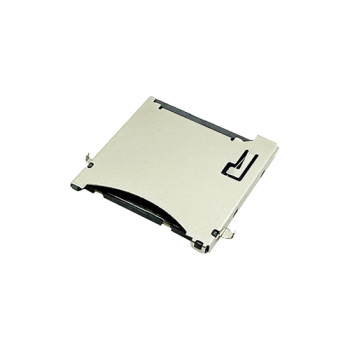

Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Sink 1.35mm Type, Push-Push Structure,1.75mm Height
Advantage：
1. Easily push-push Micros SD card,users can use it easily by pushing the micro SD card to insert and pull out it.
2. Reliable detection switch pins, supports hot-plug function.
3. Unique sink structure design,save more interior space for customer's products.
4. Slope-shaped terminal, prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.75mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.75mm Micro SD Card Connector
