Micro SD Card Slot Push-Push Sink 1.60mm Height 2.30mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MS230-T1250-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 29 May 2025 18:45:48 GMT
Paramtents
Product Height 2.30mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing

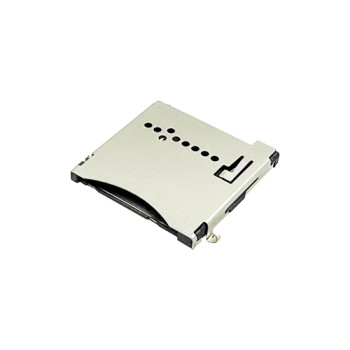

Micro SD Card Socket Connector Push-Push Type Sink In PCB With Switch Pins Support Hot-Plug
Detailed
Learn about Height 2.30mm Micro SD Card Connector
Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Sink 1.60mm Type, Push-Push Structure,2.30mm Height
Advantage：
1. Reliable detection switch pins, supports hot-plug function.
2. Sink in PCB design,offers more interior space savings for customers' products.
3. Slope-shaped terminal, prevents terminal damage when the card is inserted and extracted.
4. Push-push function design,it is easy to insert or pull out the card.
Understand the Parameters of the Height 2.30mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
9
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 2.30mm Micro SD Card Connector
