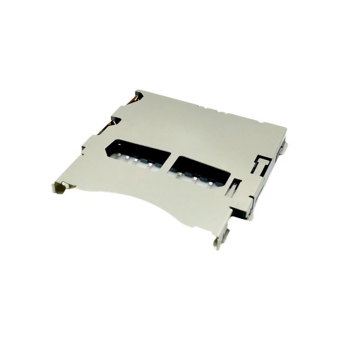

SD Card Socket Connector Push-Push Top Mount Height 2.95mm
- group name
- SD 3.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD Card Connector（SD295-T1200-01-W）(5035000993)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Tue, 20 May 2025 16:16:00 GMT
Paramtents
Product Height 2.95mm
Usable Memory Card SD 3.0 memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
SD Card Connector 9pin With Card Detection Pin and Write Protection Pin Support Hot-Plug For Card Reader
Detailed
Learn about Height 2.750mm SD 3.0 Card Connector
Secure Digital (SD) 3.0 Memory Card Connector
2.50mm Pitch SD 3.0 Memory Card Connector, Top Mount SMT Type,Push-Push structure, 2.95mm Height
Advantage：
1. Supports hot-plug functionality, allowing the storage card to be recognized without restarting the device.
2. The product features a write-protection design to prevent accidental data modification or deletion.
3.Equipped with a push-push mechanism for easy card insertion and ejection, with a lifespan of over 10,000 cycles.
4.Complies with RoHS&REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 2.95 mm SD 3.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Short Type Small Size
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 2.95mm SD 3.0 Card Connector
