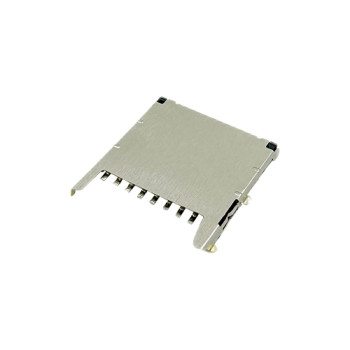

Micro SD Card Connector Push-Pull Type Top Mount Height 1.15mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（TF115-T1251-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Fri, 23 May 2025 14:35:07 GMT
Paramtents
Product Height 1.15mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
1.15mm Altra Thin Micro SD Card Connector With Card Detection Pin Support Hot-Plug Used In Medical Equipment To Storage Data
Detailed
Learn about Height 1.15mm Micro SD Card Connector
Micro SD Memory Card Connector
1.10mm pitch Micro SD Memory Card Connector,Top Mount SMT 1.45mm Type, Push-Push structure,1.15mm Height
Advantage：
1. Ultra-thin (1.15mm) design, suitable for various portable electronic devices.
2. Supports hot-plug, allowing the memory card to be recognized without restarting the device.
3. Push-Pull mechanism for effortless insertion and ejection, ensuring user-friendly operation.
4. Gold-plated contacts provide oxidation and corrosion resistance, ensuring stable signal transmission.
Understand the Parameters of the Height 1.150mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.15mm Micro SD Card Connector
