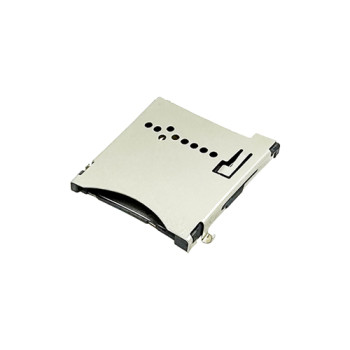

Micro SD Memory Card Connector Push-Push Sink Type Height 1.60mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（MS160-T1250-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 24 May 2025 15:03:17 GMT
Paramtents
Product Height 1.60mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Micro SD Card Connectors Are Designed For Secure And Reliable Connections With Micro SD Cards Commonly Used In Card Reader
Detailed
Learn about Height 1.60mm Micro SD Card Connector
Micro SD Memory Card Connector
0.90mm pitch Micro SD Memory Card Connector,Top Mount Sink 1.45mm Type, Push-Push structure,1.60mm Height
Advantage：
1.The product adopts a sink-type design,offering flexible compatibility with the internal spatial layout of customer equipment.
2. Reliable detection switch pins, supports hot-plug function.
3. Ultra-thin design,offers more interior space savings for customers' products.
4. Slope-shaped terminal, Prevents terminal damage when the card is inserted and extracted.
Understand the Parameters of the Height 1.60mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
10
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.60mm Micro SD Card Connector
