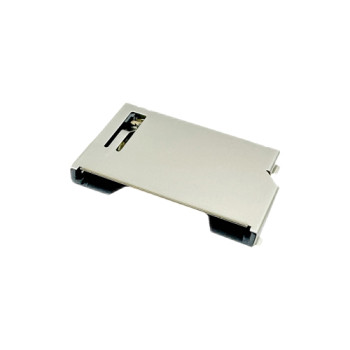

SD 3.0 Card Connector Push-Pull Top Mount Height 3.09mm
- group name
- SD 3.0 Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- SD Card Connector（SDD-T1250-08）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Thu, 22 May 2025 11:08:09 GMT
Paramtents
Product Height 3.09mm
Usable Memory Card SD 3.0 memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
SD Card Socket Connector 5000 Cycles Long Life With Card Detection Pin Push-Pull Type Used In Card Reader
Detailed
Learn about Height 3.09mm SD 3.0 Card Connector
Secure Digital (SD) 3.0 Memory Card Connector
2.50mm Pitch SD 3.0 Memory Card Connector, Top Mount SMT Type, Push-Pull structure, 3.09mm Height
Advantage：
1. Supports hot-swapping, enabling storage card recognition without the need to restart the device.
2. Features a write-protection function to prevent accidental data modification or deletion.
3.Thin and light weight, small size, optimized PCB space, Saving internal space for customers.
4.Complies with RoHS/REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 3.09 mm SD 3.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
11
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Short Type Small Size
|
|
Used for: | Computer/Card reader/Docking Station/Laptop/Digital Cameras | |
Download
Detail Drawing of Height 3.09mm SD 3.0 Card Connector
