Smart Card Connector 8pin With 2 Switch Pins Height 0.45mm
- group name
- Smart Card Connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Smart Card Connector（SM045-T2100-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Tue, 03 Jun 2025 16:35:45 GMT
Paramtents
Product Height 0.45mm
Usable Memory Card smart card
Base Material LCP
Terminals Material Phosphorous Bronze
Packging & Delivery
-
Min Order1000 piece
Briefing
The Smart Card Socket Connector Is An Electronic Interface Component Used For Inserting And Connecting Smart Cards,Mainly Enabling Data Communication And Signal Transmission
Detailed
Learn about Height 0.45 mm Smart Card Connector

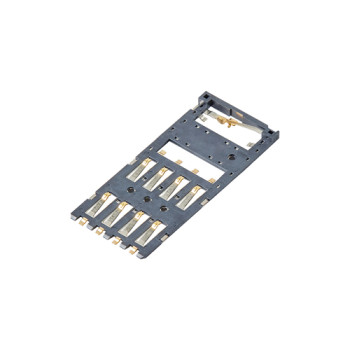

Smart Card Socket Connector
2.54mm Pitch Smart Card Connector, Top Mount SMT Type, 8 pins With 2 switches,0.45mm Height
Advantage：
1. Strict coplanarity control, make sure to it is a exceptional solderability.
2. Simple design,no automatic ejection mechanism,with price advantage.
3. Ultra-thin design,save more interior space for customers' products.
4.Reliable detection switch pins,support hot-plug function.
Understand the Parameters of the Height 0.45 mm Smart Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
N/A
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Hot-swappable
|
|
Used for: | ETC(Electronic Toll Collection),Smart Home,Payment Terminals | |
Download
Detail Drawing of Height 0.45 mm Smart Card Connector
