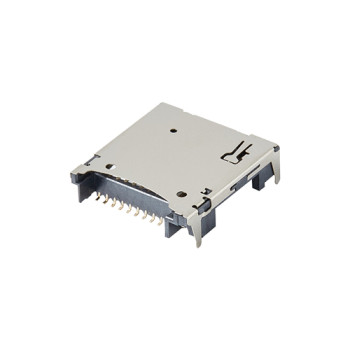

Micro SD 4.0 Card Connector Push-Push Stand off 1.63mm Height 2.90mm
- group name
- Micro SD 4.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD 4.0 Card Connector（MS290-T1150-01）
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Fri, 23 May 2025 14:00:10 GMT
Paramtents
Product Height 2.90mm
Usable Memory Card Micro SD 3.0&4.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Detailed
Learn about Height 2.90mm Micro SD 4.0 Card Connector
Micro SD 4.0 Memory Card Connector
0.90mm Pitch Micro SD 4.0 Memory Card Connector, Top Mount Stand off 1.63mm SMT Type, Push-Push structure, 2.90mm Height
Advantage：
1. The product is a stand-off type, offering flexible adaptation to the internal space layout of customer equipment.
2. Supports Micro SD 4.0 high-speed transfer, making it suitable for high-performance card reader products.
3. Features a push-push mechanism for easy card insertion and ejection, with a lifespan of over 5,000 cycles.
4. Complies with RoHS and REACH environmental certifications, meeting global market access standards.
Understand the Parameters of the Height 2.90 mm Micro SD 4.0 Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
300 Mb/s
|
|
|
Number of pins:
|
17
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
High Rate Transmission
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle/Smart Home/Card reader | |
Detail Drawing of Height 2.90mm Micro SD 4.0 Card Connector
