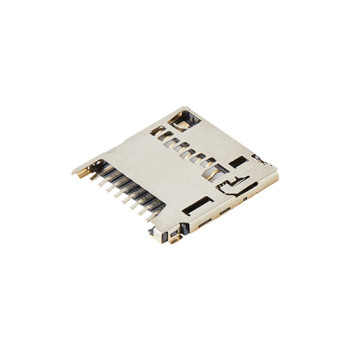

Micro SD Connector Push-Push Height 1.28mm
- group name
- Micro SD 3.0 card connector
- Min Order
- 1000 piece
- brand name
- Moarconn Card Connector Manufacturer
- model
- Micro SD Card Connector（TF128-T1151-02）(5033981892)
- Nearest port for product export
- Shenzhen, Ningbo, Shanghai
- Delivery clauses under the trade mode
- FOB, DDU, Express Delivery
- Acceptable payment methods
- T/T, Credit Card, PayPal, Westem Union
- update time
- Sat, 06 Dec 2025 13:39:26 GMT
Paramtents
Product Height 1.28mm
Usable Memory Card Micro SD 3.0 memory card / TF memory card
Base Material LCP
Terminals Material Phosphorous Bronze
Shell Material Stainless Steel
Packging & Delivery
-
Min Order1000 piece
Briefing
Ultra Thin Micro SD Card Connector With Detection Pins Support Hot-Plug General Used In Smart Monitoring
Detailed
Learn about 1.28 mm Micro SD Card Connector
Micro SD Memory Card Connector
1.10mm Pitch Micro SD Memory Card Connector, Top Mount SMT Type, Push-Push Structure, 1.28mm Height
Advantage：
1. Ultra-thin design saves more internal space for customers' products.
2. The product with detection pins,support hot-plug function.
3. Push-push design can be convenient insertion and ejection of card.
4. The product conform to RoHS and REACH standards.
Understand the Parameters of the 1.28 Mm Micro SD Card Connector
|
Technical Parameters
|
||
|
Rating Current:
|
0.5 A
|
|
|
Rating Voltage:
|
500 V
|
|
|
Contact Resistance:
|
100 mΩ
|
|
|
Insulation Resistance:
|
1000 MΩ
|
|
Useful Life: | 5000 cycles | |
|
Additional Parameters
|
||
|
Transmission Rate:
|
104 Mb/s
|
|
|
Number of pins:
|
8
|
|
|
Number of interfaces:
|
1
|
|
|
Features:
|
Smart/Ultrathin
|
|
Used for: | Monitoring Equipments/Industrial Automation/Drive Recorders/Unmanned Aerial Vehicle | |
Download
Detail Drawing of Height 1.28 mm Micro SD Card Connector
